TMP4500 TELESIS – PINSTAMP SINGLE PIN MARKING SYSTEMS

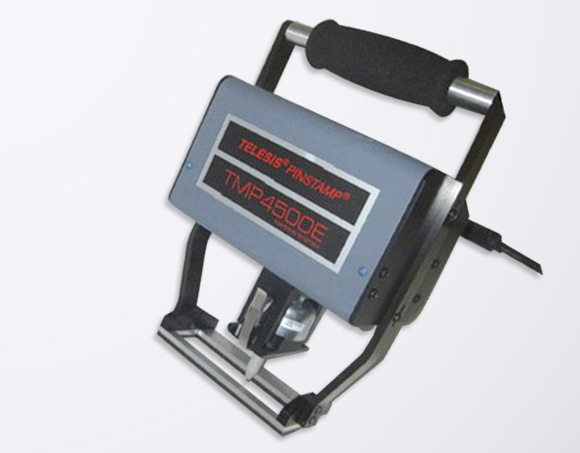

TMP4500 Pinstamp Single Pin Marking System
La struttura elettromeccanica ne permette l’utilizzo senza l’ausilio dell’aria compressa. Robusto e maneggevole con un’ampia area di marcatura di 100 mm x 25 mm, è la scelta perfetta per le applicazioni dove sono richiesti praticità di utilizzo e marcature a profondità elevata.
SPECIFICATIONS TMP4500 Pinstamp Marking
| Ergonomic dual handle design |
| Large 1” x 4” (25mm x 100mm) marking window |
| Extremely robust design featuring rugged X-Y platform and all metal enclosure |
| Powerful pin drive design for marking depths of up to 0.018” (0.46mm) in mild steel |
| Weighs less than 6.6 pounds (3.0kg) - less electronic cables |
| Marks at speeds up to 3 characters-per-second |
| Self-contained, state-of-the-art TMC470 controller with USB, Ethernet, and 2 serial ports |
| Automatically generates serial numbers, date, time and shift codes |
| Stores up to 200 marking patterns |
Visualizza la SCHEDA TMP4500 Pinstamp Marking Telesis
