TMP3200 TELESIS – PINSTAMP SINGLE PIN MARKING SYSTEMS

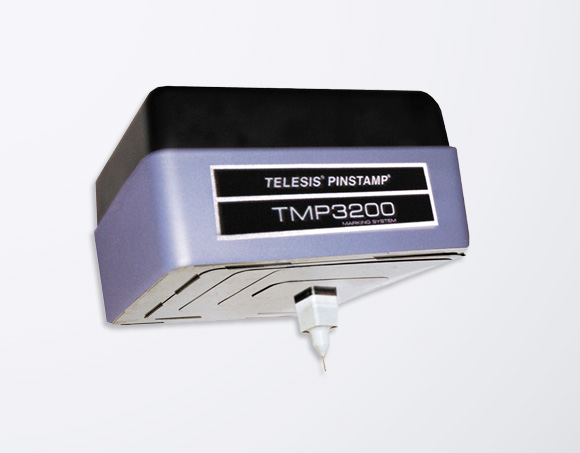

TMP3200 Pinstamp Single Pin Marking System

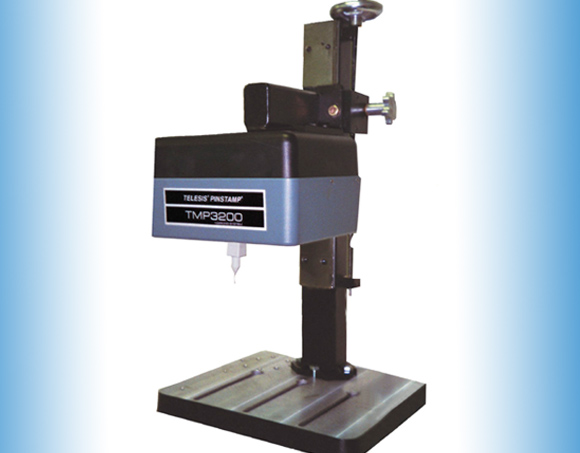

Pinstamp Single Pin con testa integrabile robusta dalle dimensioni ridotte. Ampia area di marcatura 150×100 mm, Disponibile sia in versione integrabile sia montata su supporto a colonna per l’utilizzo da banco di lavoro. Dotato di un sistema di protezione da contaminanti liquidi e solidi, sono garantiti per un utilizzo duraturo.
SPECIFICATIONS TMP3200 Pinstamp Marking
| 4"x6" (100mm x 150mm) marking window |
| Belt-driven, dual rail X/Y mechanism with superior wear characteristics |
| Patented floating pin technology accommodates surface irregularities of up to 0.25" (6mm) |
| Marks a wide range of materials from soft plastics to hardened steel - up to Rc60 |
| Choise of pin sizes for marking dephts from 0.001" - 0.018" (0.03mm - 0.45mm) |
| Self-contained, state-of-the-art TMC470 controller features two serial ports, USB port and Ethernet port |
| Automatically generates serial numbers, date, time and shift codes |
| Stores up to 200 marking patterns |
| Easily interfaced to PLCs (Programmable Logic Controllers) and Host Computers |
| Dot density up to 200 dots-per-inch (79 dots-per-centimeter) |
Visualizza la SCHEDA TMP3200 Pinstamp Marking Telesis

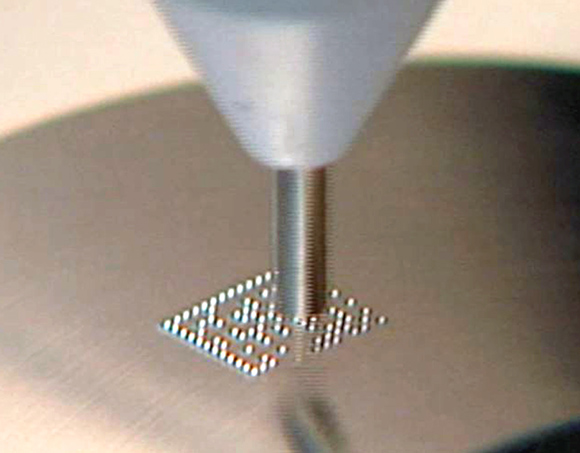

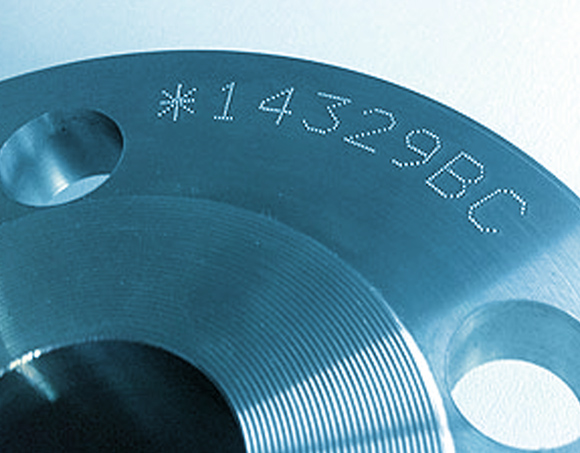

Esempi di Stampa
-
- Asse Z
